Yeoman's Plow Co

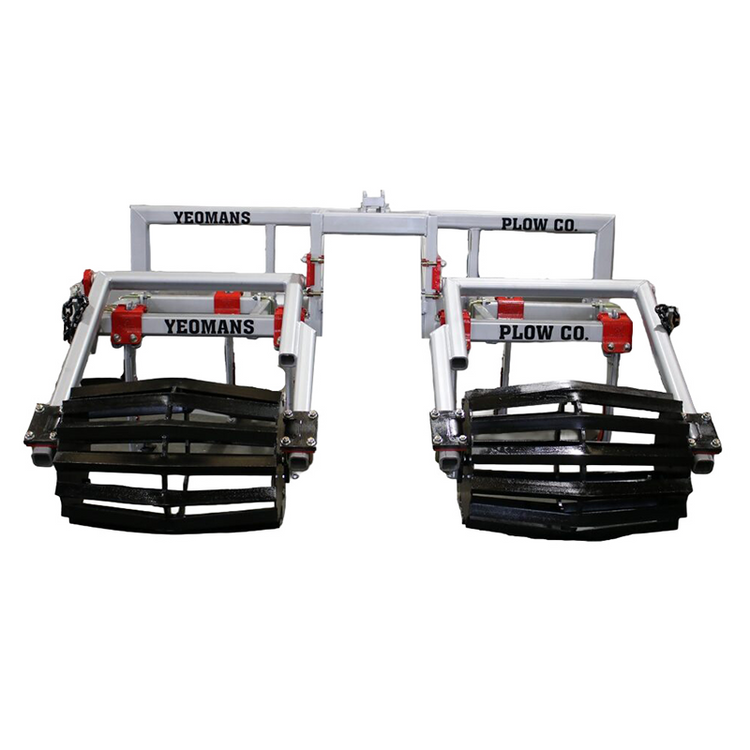

Yeomans JA Plow-Arched Beam

Part: JA

The Yeomans JA Series Keyline Plow is a high‑clearance, two‑beam, three‑point linkage plow designed for sugar cane cultivation.

Its arched frame allows cultivation over established cane stools while retaining flexible shank spacing and configuration options for stool splitting, side‑row and centre‑row work.

  • 3 Point Linkage
  • Suitable for Regeneration & Sugar Cane Cultivation
  • Up to 34” Tilling Depth (26” Standard Depth)
  • Suitable for 75-175hp Tractors
  • 4″ x 4″ 3/8 RHS Frame & Toolbars – Manufactured in Australia

Hitch: Heavy duty weld-on hitch to suit Category 2, 3, 3N or quick hitch

Frame: Manufactured in Australia. The main toolbars are fully welded from 4″ x 4″ 3/8 RHS.

Optional Depth Control: Award winning “Ripple Clamp” system gives 25mm (1″) incremental height adjustment and capable of variable positioning internally or externally of the frame. The sugar cane JA Plow is fitted with 185R14C (8 Ply) tyres on HT holden wheels and hubs.

Specifications

Frame Width: 2.7m

Frame Depth - Toolbar: 1220mm (48")

Frame Depth - Overall: 1420mm (56")

Standard Shank: 660mm (26″)

Frame Height: 582mm (23″)

Frame Weight: 605kg



Follow link below for more info & specs on the Yeoman's JA Series.

https://yeomansplow.com/au/product/ja-plow-arched-beam/
