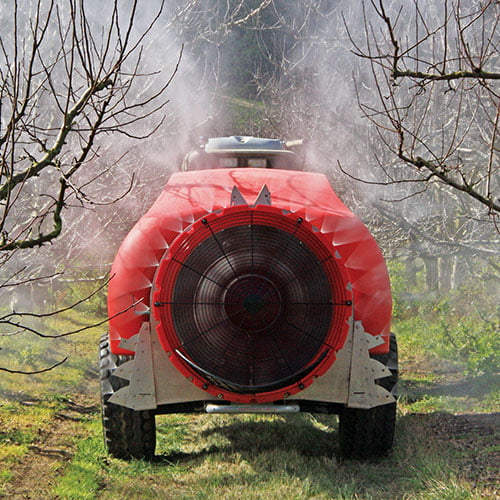

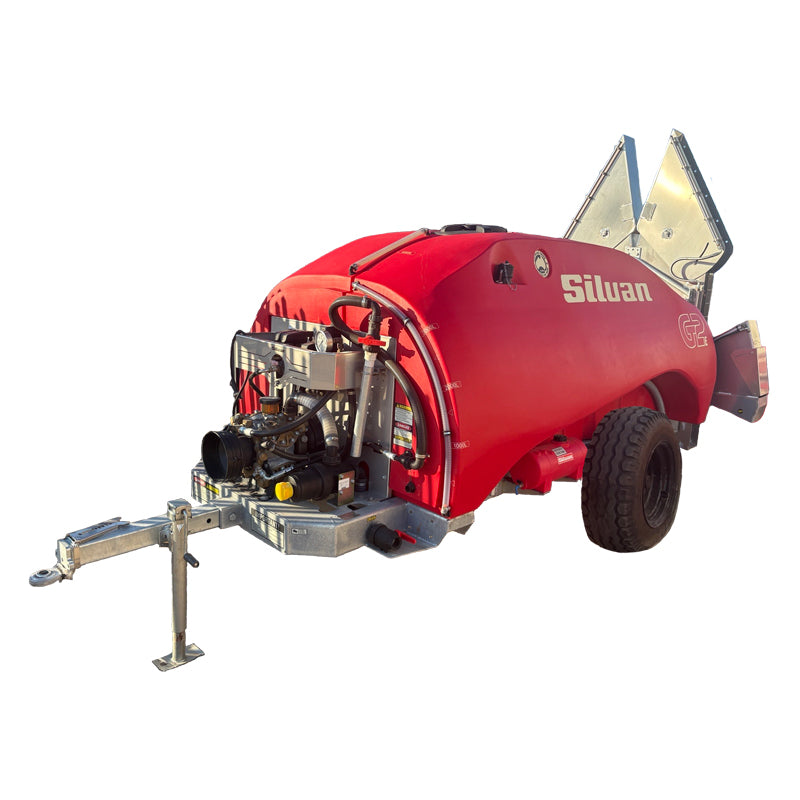

SILVAN SUPAFLO G2E 4000L SPRAYER WITH RADAK FAN

Trailed air assist 4000 litre G2E sprayer with 161L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and Radak conveyor with 920mm fan. Ideal for orchards with trees up to 5 metres high.

Specifications

Connection Type: Trailed

Min PTO HP: 80

Pump Size (L/min): 181

Height / Width / Length (MM): 2020 / 1880 / 5050

Product Weight (KG): 1220

Application: Orchards

Key Features

Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast aluminium body with brass heads & manifolds. IDS2001 Pump: 181L/min capacity, 5000kPa pressure.

Fan Size: 1000mm axial flow type,10 bladed fan with curved nylon reinforced blades, centrifugal clutch for soft engagement/disengagement and protective mesh cover.

Nozzles: 24 flip-over nozzle bodies for dilute/concentrate spraying with on/off. 12 Ceramic hollow cone nozzles per side and 12 ceramic jets with stainless steel swirl plates per side. (16 per side with the Radak conveyor).

Control: 40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.

Frame: Galvanised steel, heavy duty stand & adjustable drawbar.

Factory Options

• Hydraulic kit for Radak Conveyor (top wings) (D99-155B)
• SCRAM Jet (to suit Radak conveyor) (D99-180)
• AVO Jet (to suit Radak conveyor) (D99-187)
• Leaf guard (to suit Powerhead & Radak) (D99-176)
• Twin nozzles (includes extra nozzles) (D99-182)
• Bravo 180S automatic rate controller (D99-143)
• Tandem suspension axle with 11.5/80 - 15.3 tyres (D99-78)
• BKT flotation tyres - 558-400/55 - 22.5 (in lieu of singles) (D99-79)

• IDS2600 pump,249L/min. capacity, 5000kPa pressure (D99-149)
