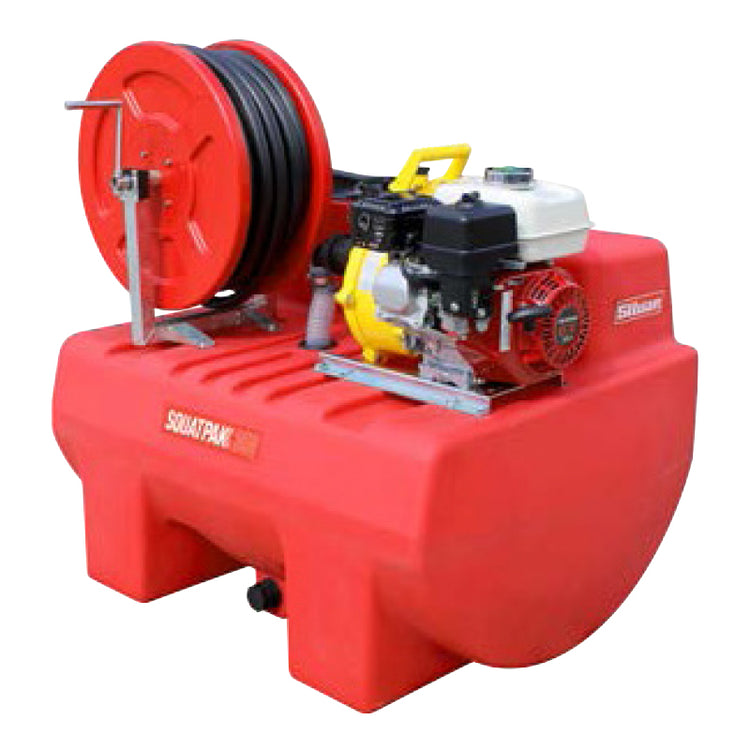

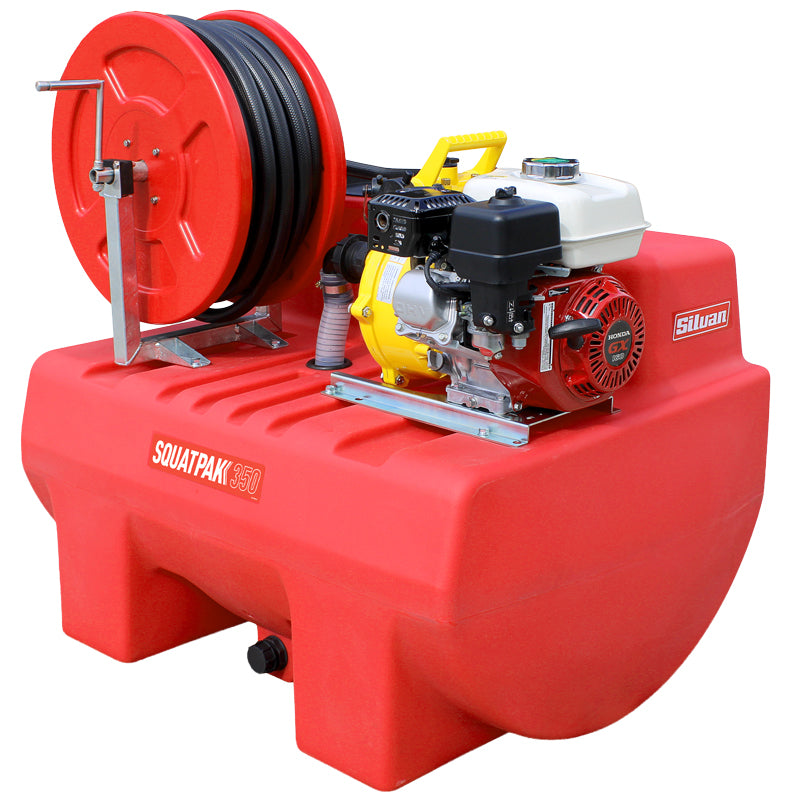

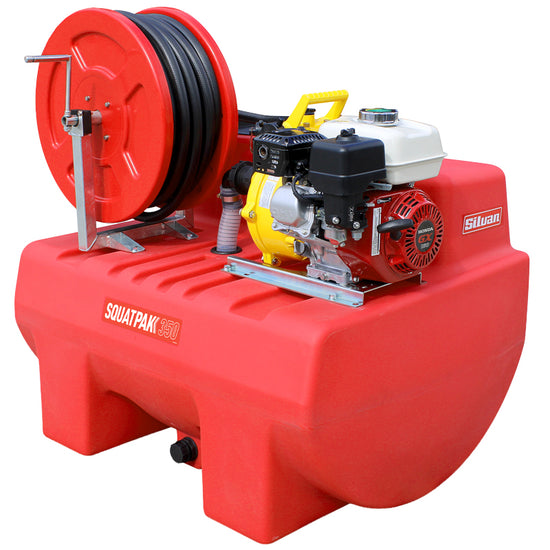

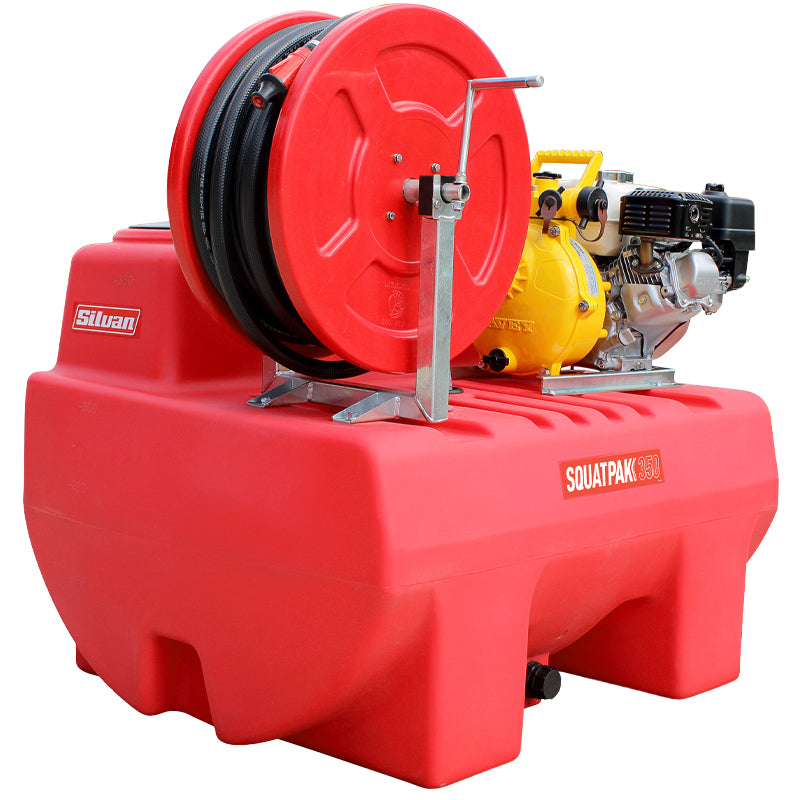

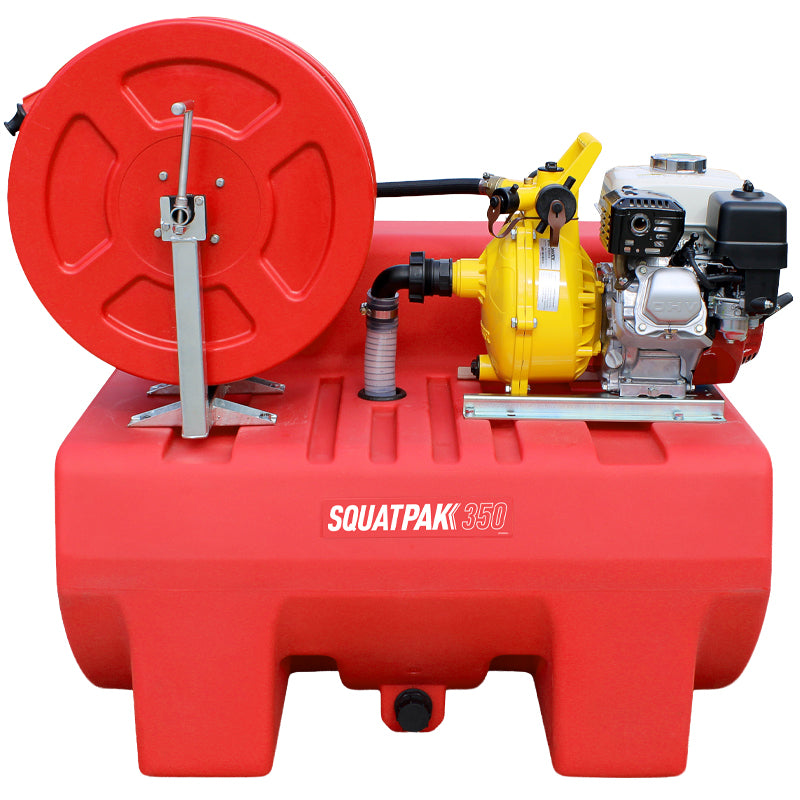

SILVAN 350L SQUATPAK FIREFIGHTER

Key Features

• Water Tank
  •  350L capacity UV Stabilised Impact resistant Polytuff tank
  • Internal TWIN BAFFLES to reduce surge when travelling
  • 255mm screw in lid and strainer
  • Drain Bung for easy empty & cleaning


• Engine
  • 4 stroke, 5.5 Hp GX160 Honda 163cc
  • Manual recoil rope starts
  • Low oil protection
  • Oil used SAE 10W 30 (600ml)
  • Twin stage – foam prefilter with paper final element


• Hose Reel
  • Australian-made Fire hose reel built to withstand the harshest environments
  • Premium quality high strength galvanized steel frame
  • Durable UV stabilized polyethylene drum, made from heavy-duty, rotationally moulded polyethylene that is UV-stable & built to last
  • 1” ID 316 stainless steel inner tube
  • Side buffer mechanism assists in the hose reel not unwinding when travelling
  • Swivel handle and inlet connector
  • 30m x ¾” ID fire fighter hose & adjustable nozzle
  • The poly adjustable nozzle allows users to control the spray pattern—from a focused jet to a wide spray—offering versatility for different fire types and applications.
• Fuel Tank
  • Capacity 3.1 Litres (Unleaded)
  • Approximate fuel consumption @ full load 1.7L


• Pump Seals
  • Viton equipped internal seal, O-rings & gaskets
  • Viton for improved chemical resistance
  • Important: Please seek specialist advice from chemical supplier if pumping chemicals. Use of aggressive chemicals may void warranty.


• Pump Performance
  • Maximum output 415 (L/min), Max Pressure 80 (PSI)
  • Davey Single Impellor Pump
  • Inlet 1 x 1.5”, Outlet 2 x 1” & 2 x 1.5" ,1 x 1” for the hose reel & 3 spare


• Nozzle Range straight stream
  • Horizontal 21m approx. (full stream), Vertical 11m approx. (full stream)


• Optional Fork channels (Pair)
  • DIY Fitment, Code 430-115
