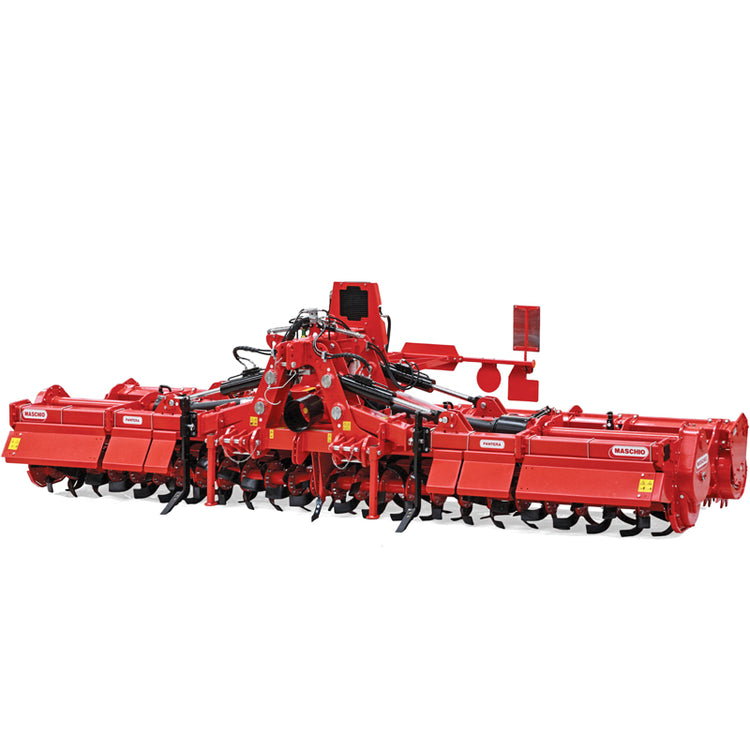

MASCHIO GASPARDO PANTERA-470 ROTARY HOE suit 220-380 HP

Part: PANTERA-470

The attention paid to the needs of farm-contractors and large farms has inspired the design and production of the PANTERA model, a professional folding steerage hoe available in three different versions (from 470, 520, 570 & 620 cm) and built for tractors with power output ranging from 200 to 380 HP.

The rigidity of the structure and the quality of the materials used guarantee long-lasting reliability and production, combined with easy and safe road transport.

All Pantera models come with a central speed gearbox and oil cooler. PTO 1000 rpm - rotor revolution (rpm): 258 optional 330rpm

  • Working Width 4.78m
  • Max working depth 27cm
  • Rec. Tractor max 220-380HP
  • Number of Blades 108 (6 blades per flange)
Standard Features:
  • Central speed gearbox 1000 rpm PTO
  • Rotor revolutions (rpm): 258
  • PTO shaft with cam clutch (1" 3/8 Z6 tractor side yoke)
  • Heavy duty side PTO shafts
  • Double side transmission with oil bath gears
  • Heavy duty barrel type rotor bearings
  • Universal three point hitch, Cat. III
  • Swinging/rigid front bar hitches
  • Six blades per flange (side blades are always mounted inwards)
  • Bonnet spring adjusters
  • Central eradicator
  • Small central share between the rollers
  • Transport width (folded): 249 cm
  • Rear lights for transport
  • Double rear bonnet
  • «CE» safety guards
